The Ronkonkoma K
Page 7
|

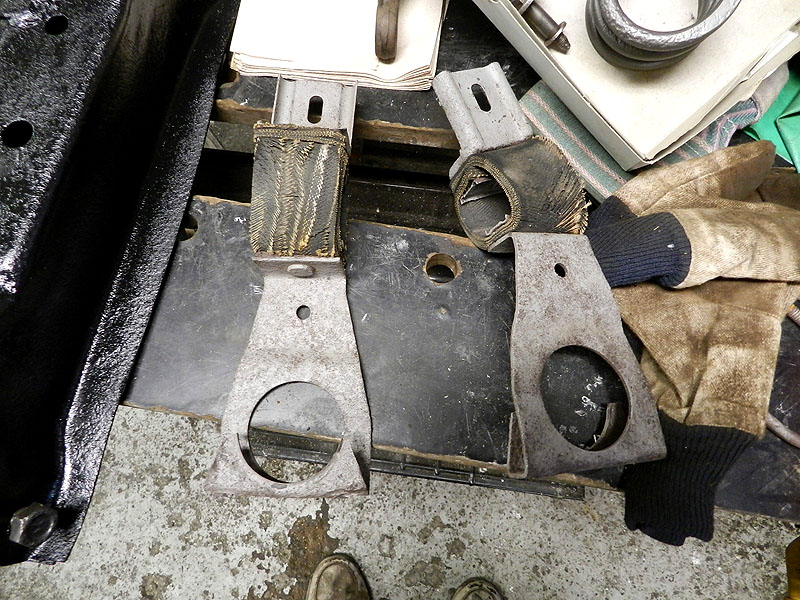

The muffler hangers. Most of the time they are shot
but these need only blast and paint. |

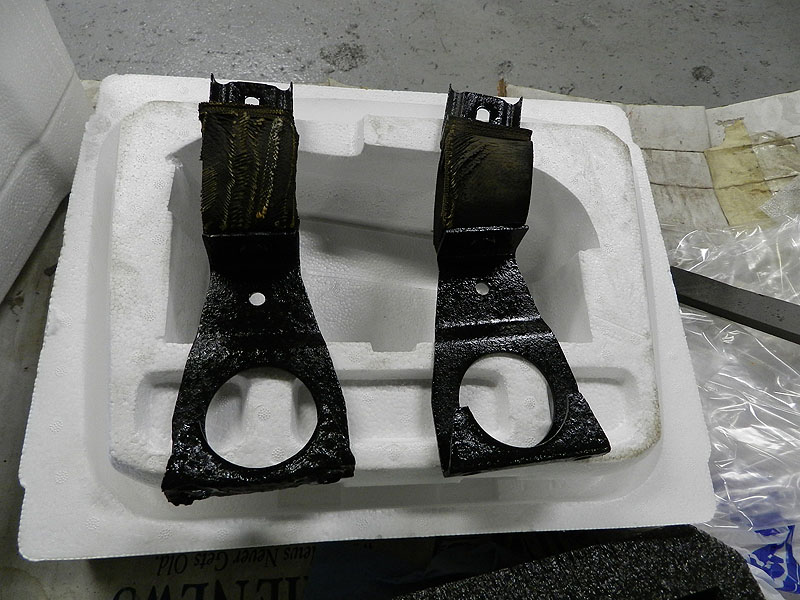

| Finished. |
|
|

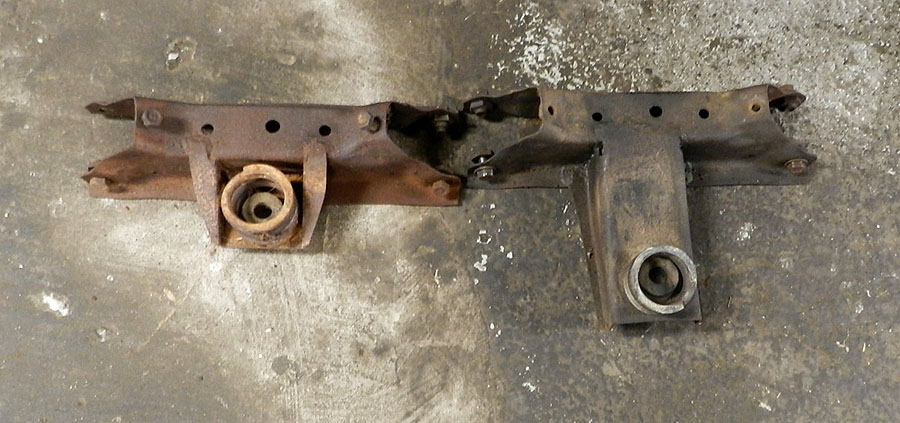

Transmission support braces.
The one on the left is the 4 speed. The one on the right is the automatic. |

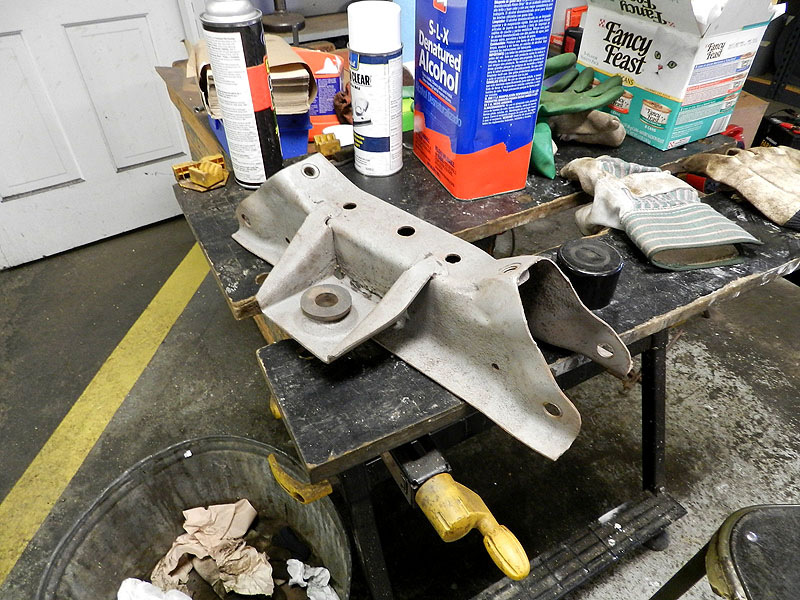

| The 4 speed transmission brace after grit blasting. |
|
|

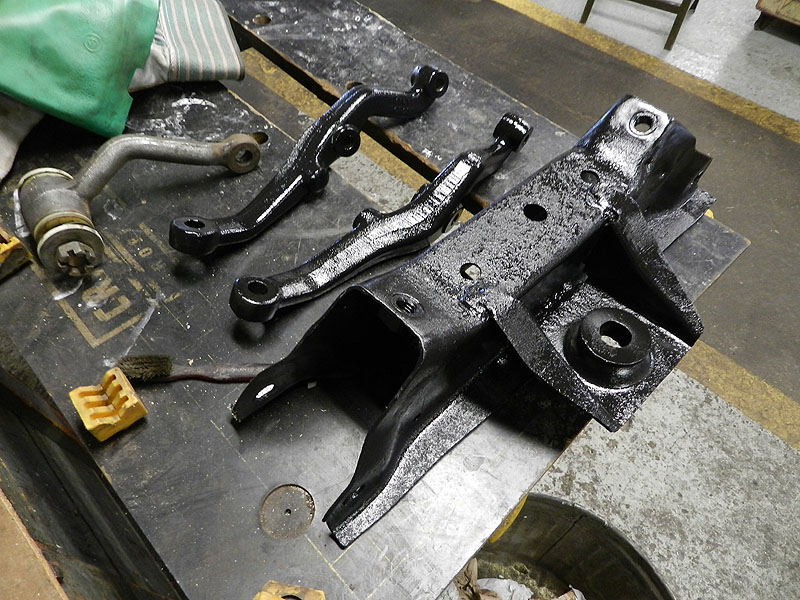

Painted, along with right and left steering knuckles
with the idler arm ready for paint. |
|

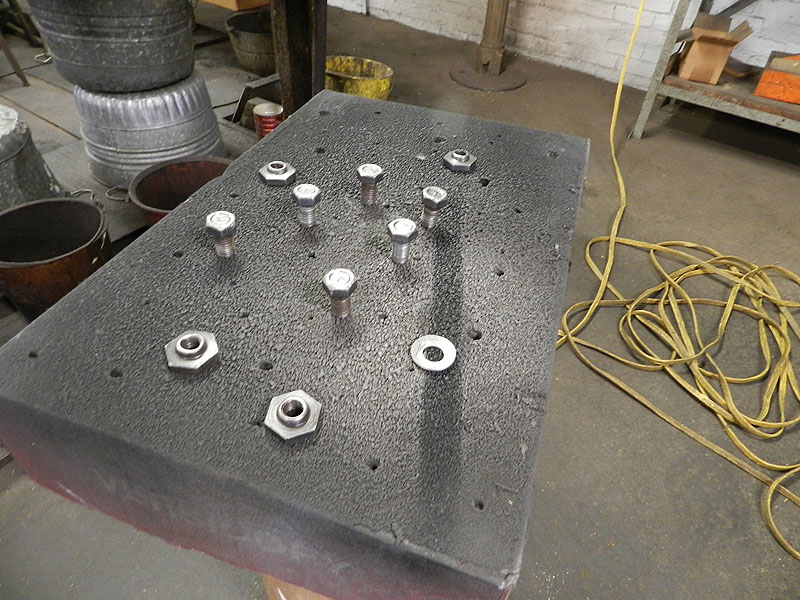

Transmission brace nuts and bolts, cleaned,
threads dressed and painted with clear. |
|
|

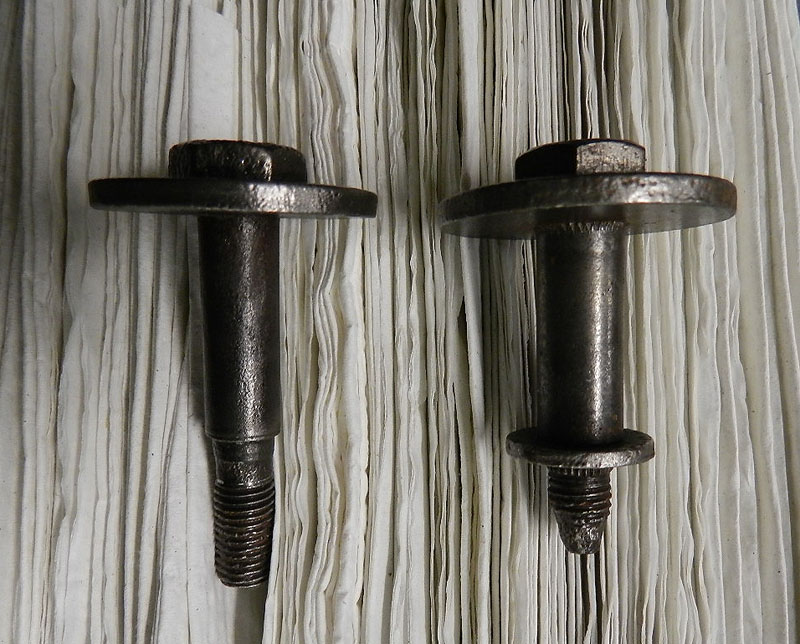

A difference in the transmission bolts;
the manual transmission bolt is on the left, the auto trans bolt on the right. |

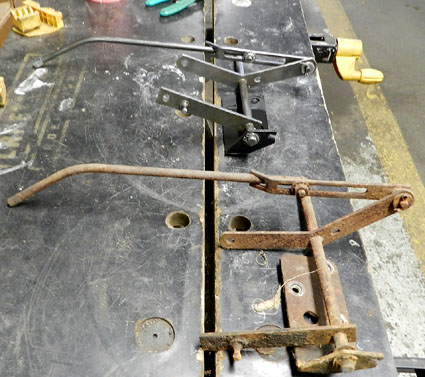

| Throttle linkages. One spare, one re-furbished original. |
|
|

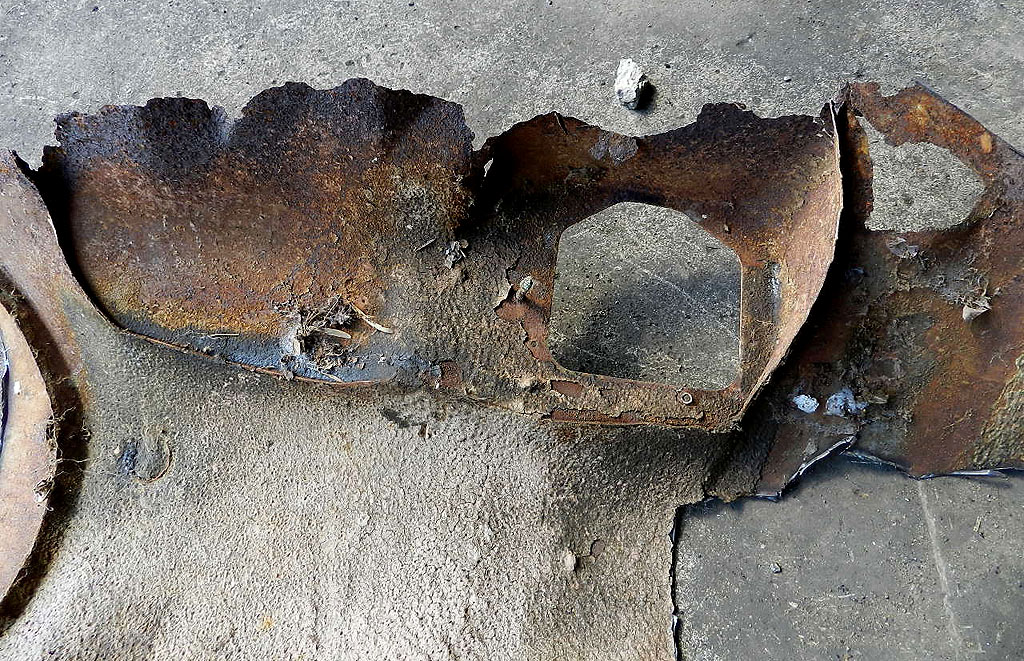

This is the floor from the transmission area on the 4 speed car. |

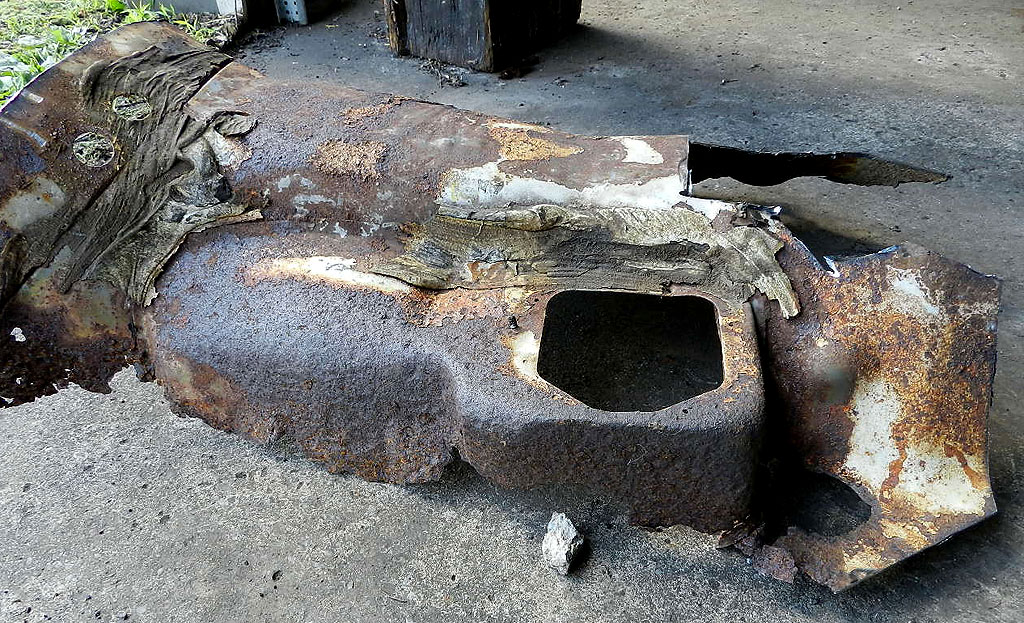

| The underside of the 4 speed floor showing the cut out and filler piece for the shifter linkage and lever. |
|
|

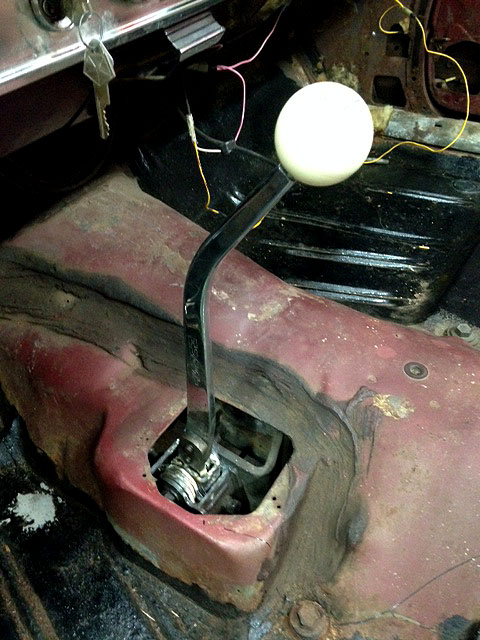

This is what the floor should look like. This is from Craig Wyllie's 64 4 speed. |
| Photo of Craig's showing the lower boot. |
|
|

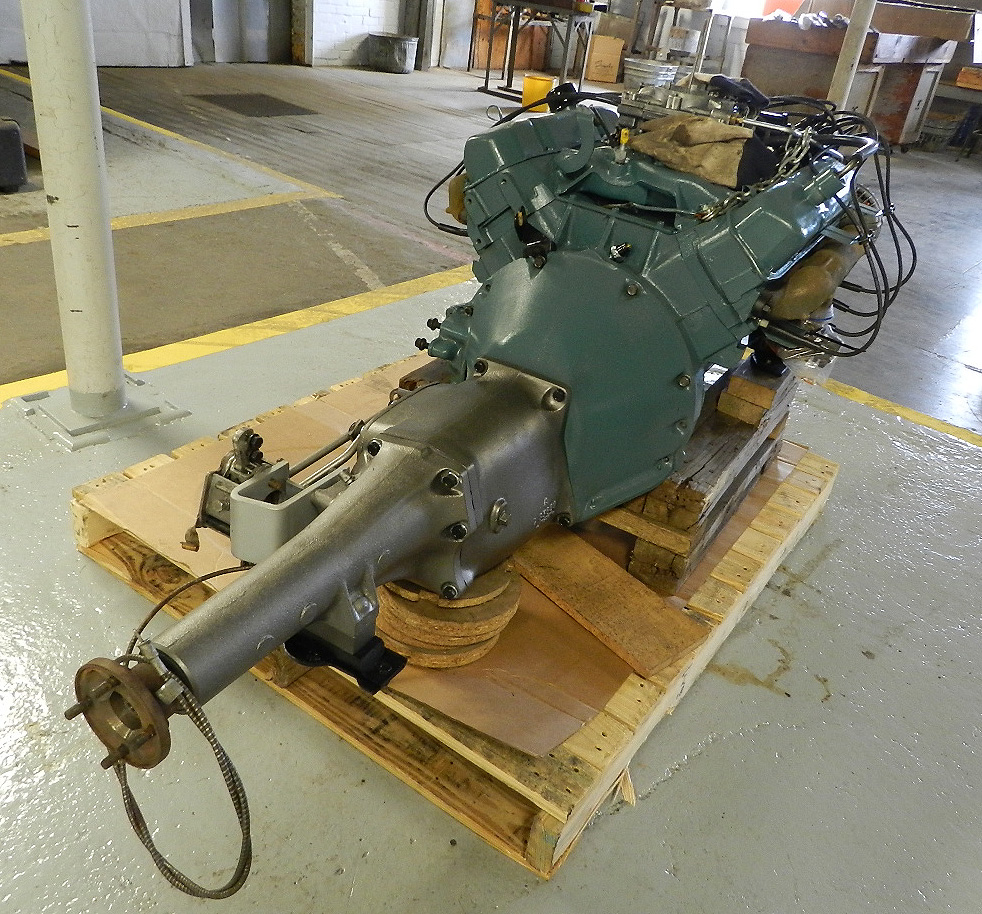

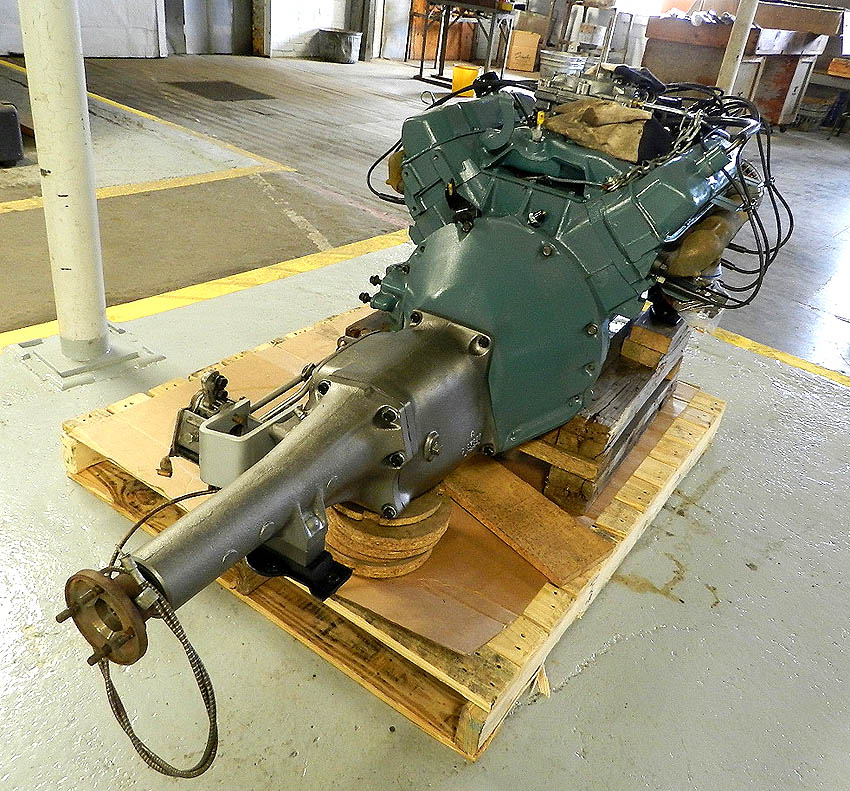

This is the restored 4 speed 413 K engine ready to install. |

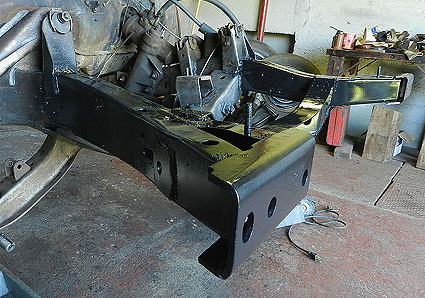

| Starting to paint the frame. |
|
|

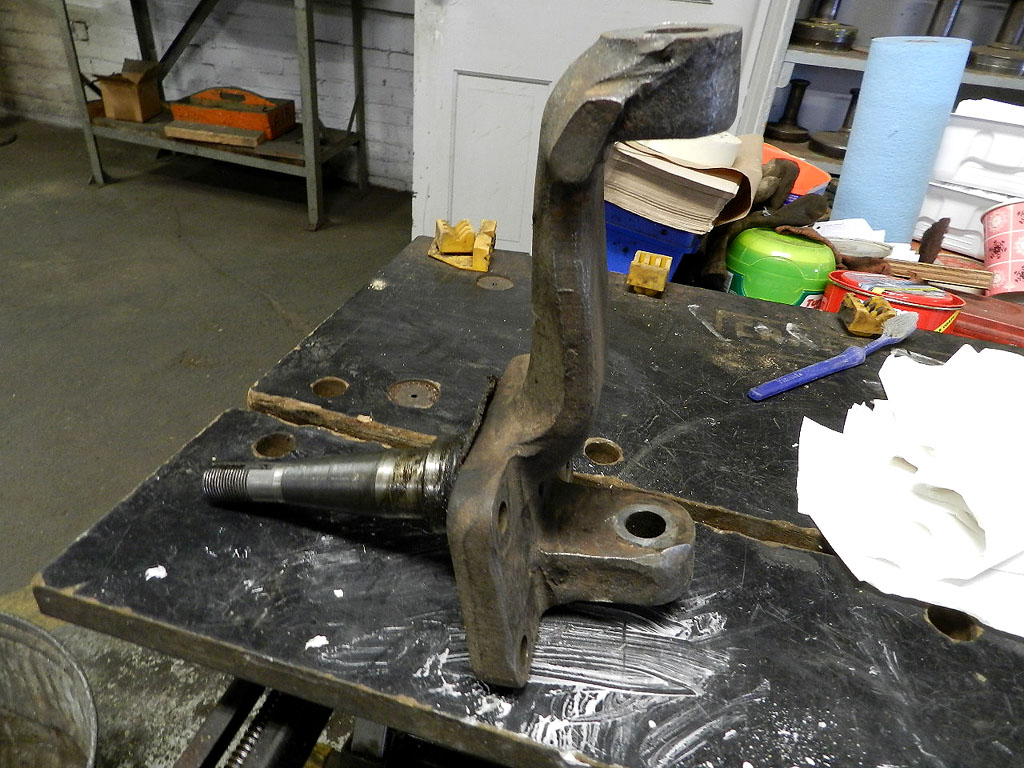

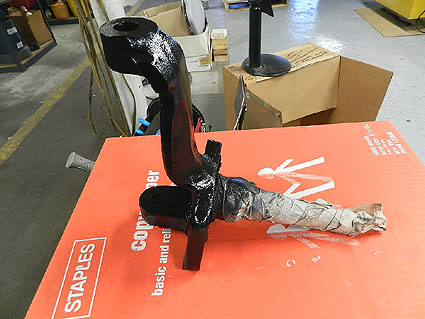

One of the suspension spindles removed for R&R. |
| Done. |
|
|

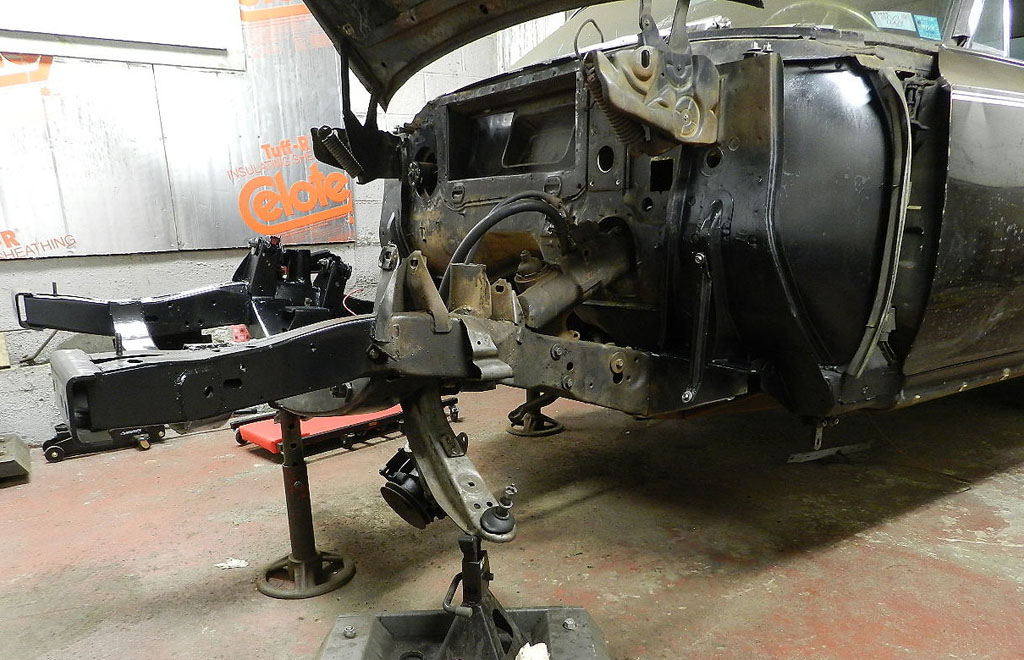

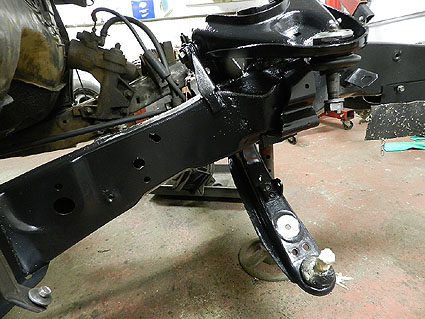

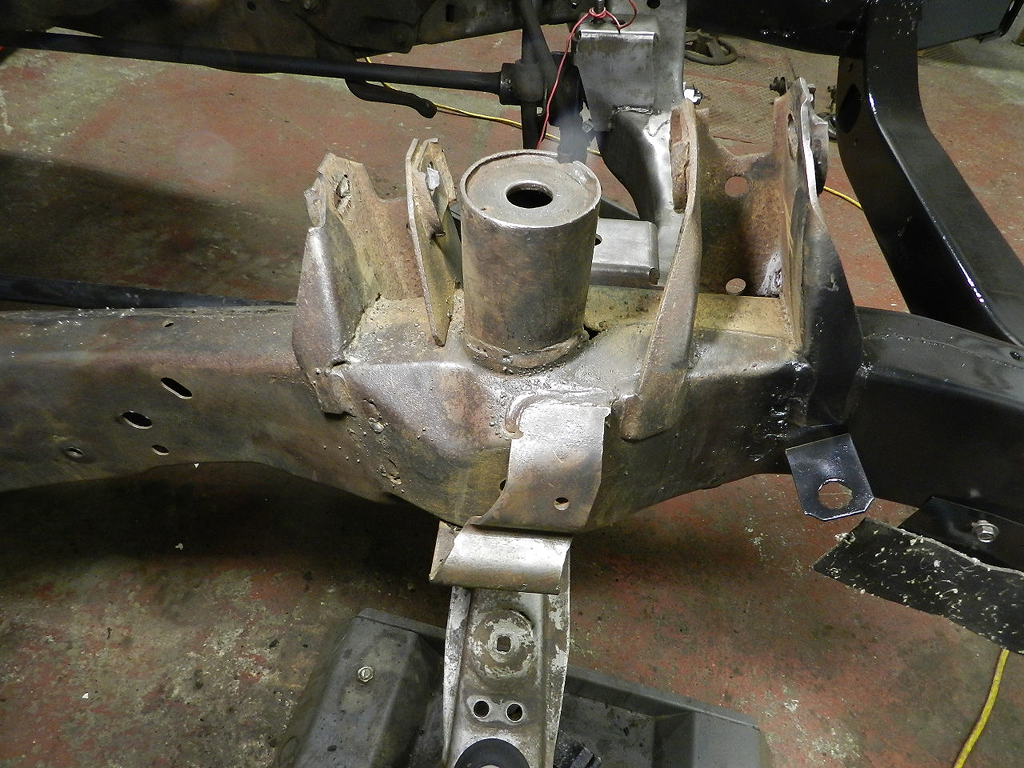

Passenger side frame, upper control arm removed. |

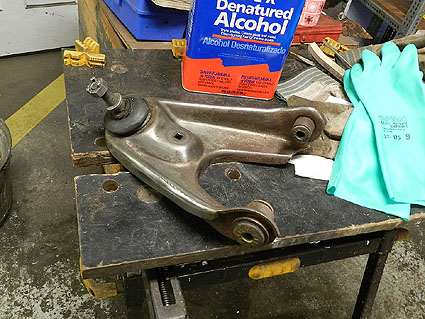

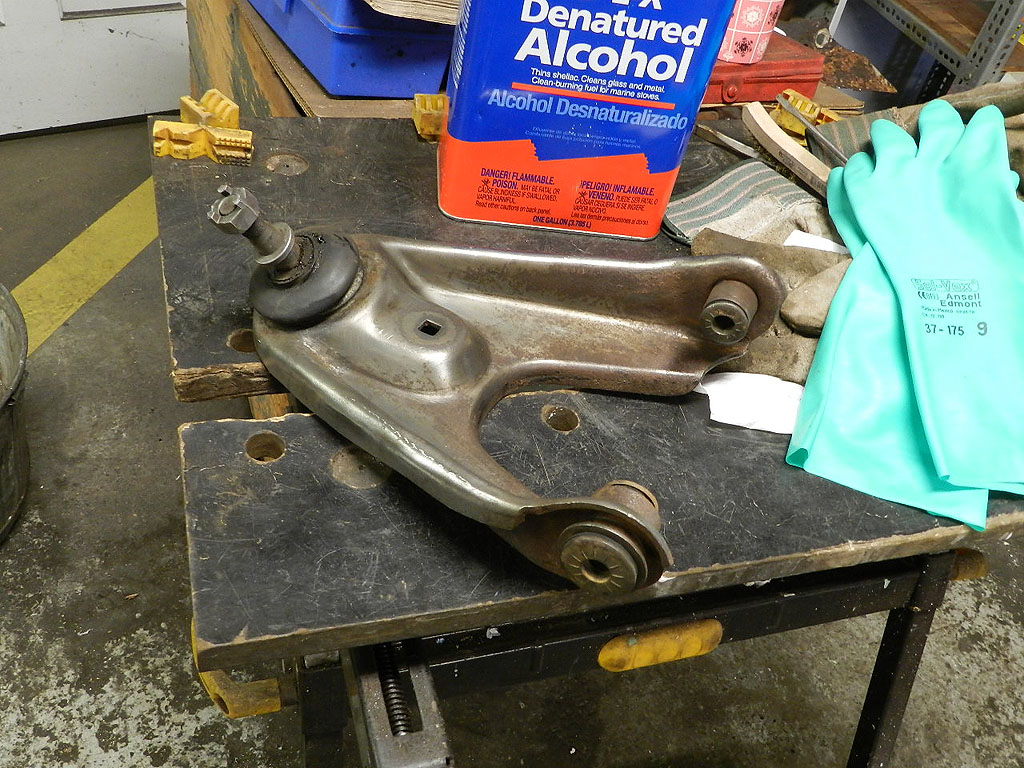

| Passenger side upper control arm before.... |
|
|

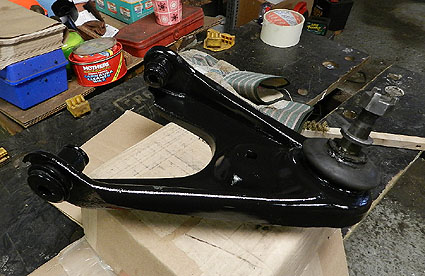

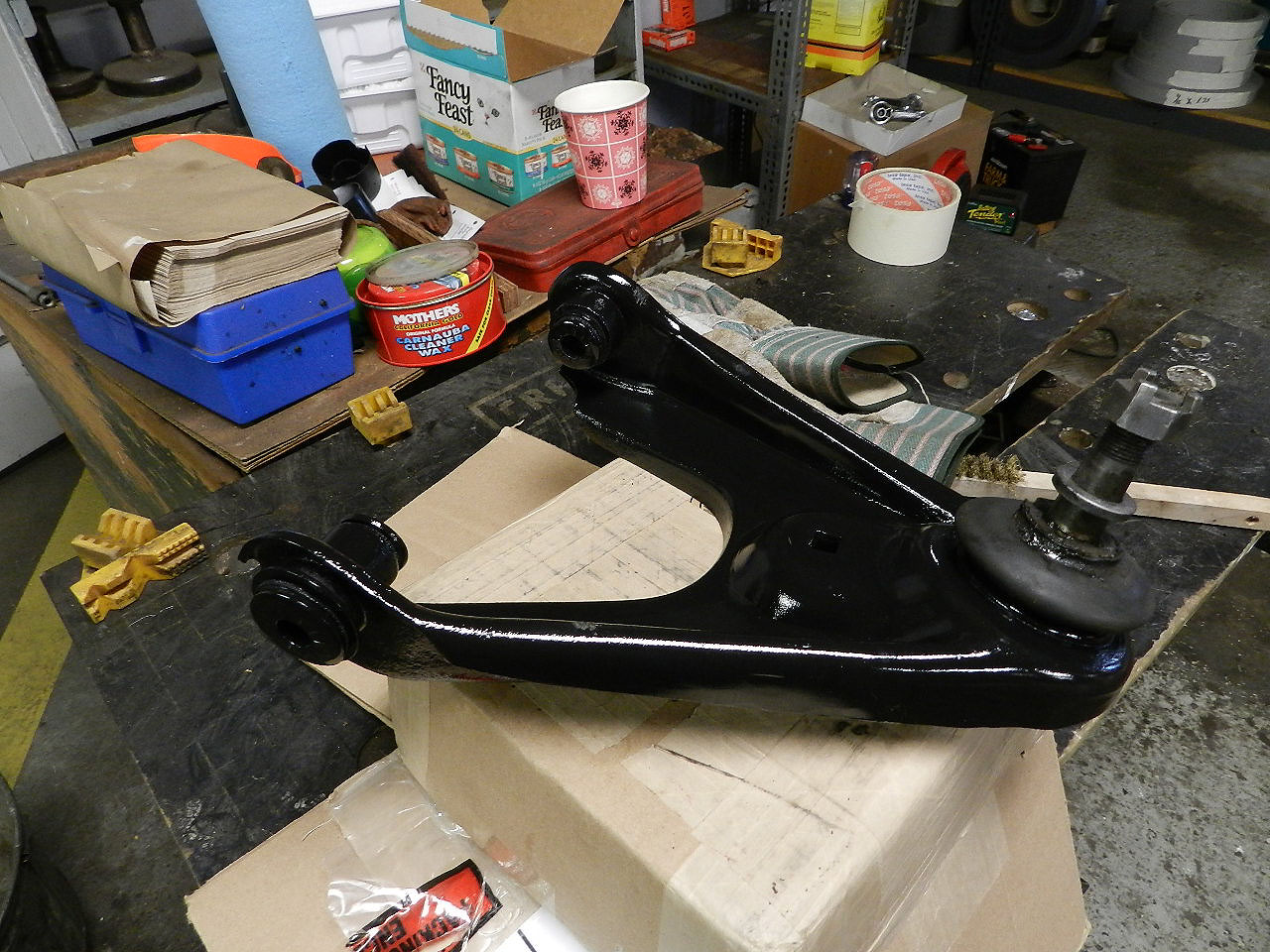

Passenger side upper control arm after. |

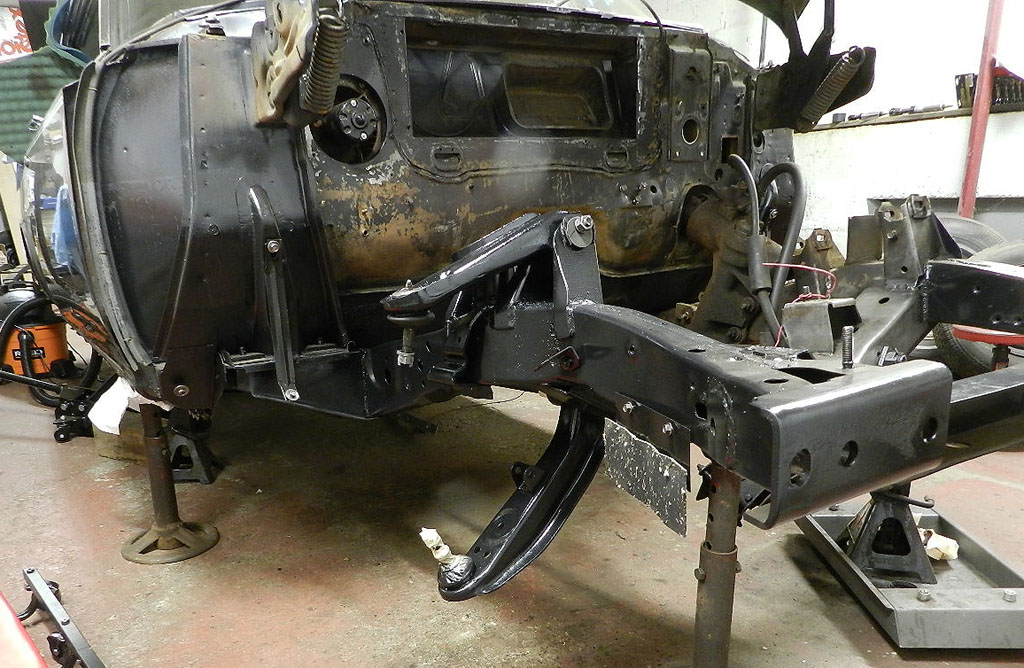

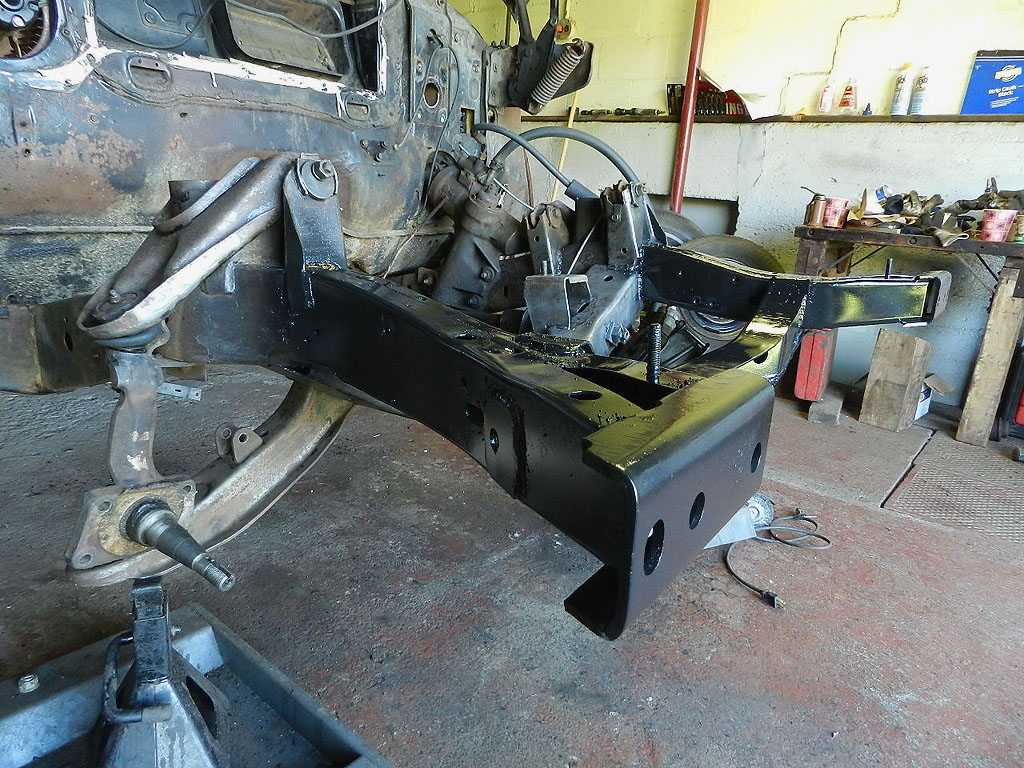

| Painting of the frame continues |
|
|
.....and continues.... |

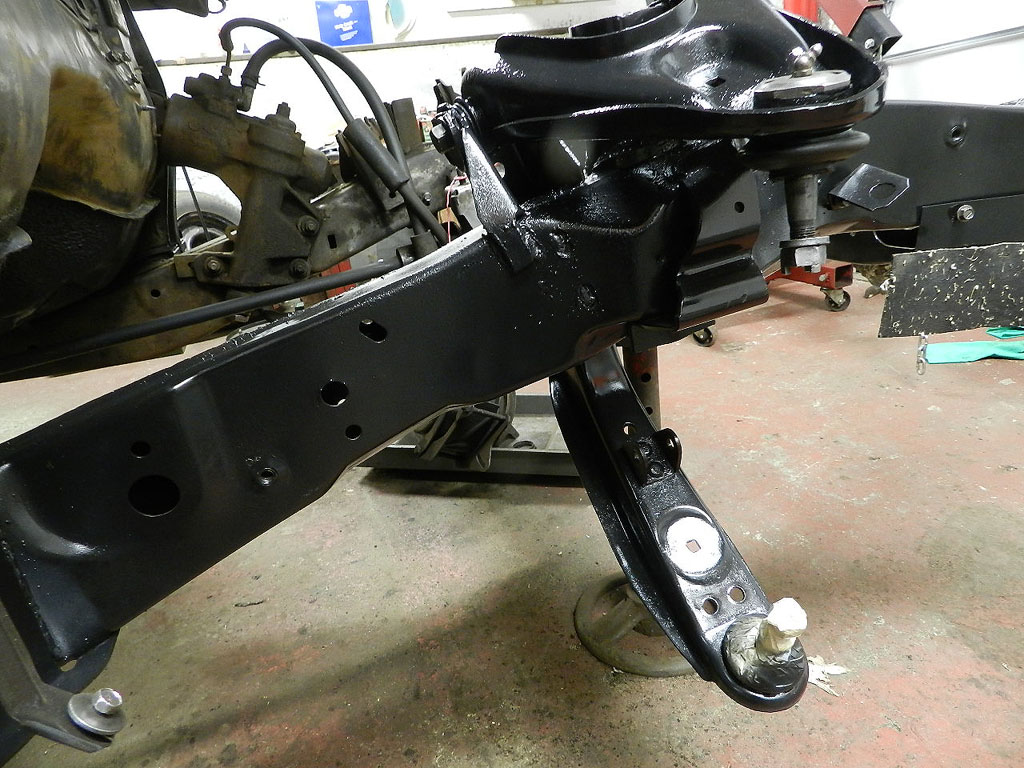

| Progress on the driver's side as well. |
|
|

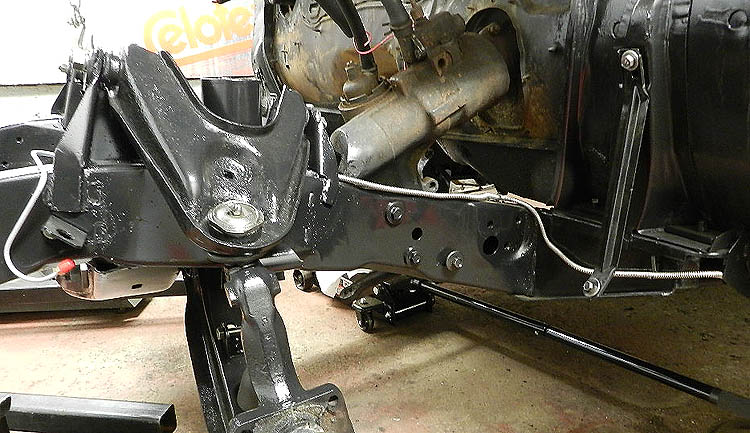

Painting of the frame continues,
and new brake lines installed. |
