383, 413, 440 Engine Storage Cradle

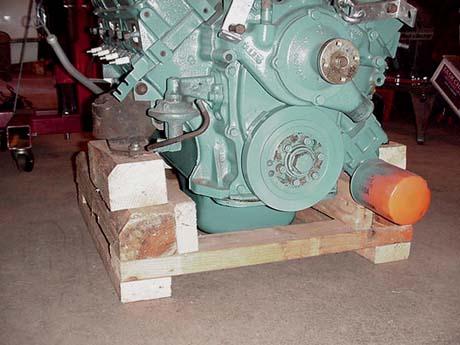

This engine cradle can be built from 2 x 4's or 2 x 4's and 4 x 4's .




This cradle will hold the engine with or without the transmission attached.


Assembly Sketches





Material List:

6
2 x 4 x 24
2
4 x 4 x 24
2
4 x 4 x 11

Alternate Material List:
(If you find it easier to double up 2 x 4s rather than use 4 x 4s)

10
2 x 4 x 24
4
2 x 4 x 11
Four pieces 2 x 4 x 8 ft will be more than enough.
